PULSEROLLER Backup Converter

The Backup Viewer will convert any ConveyLinx system backup into a spreadsheet containing valuable system information.

Benefits
CONTACT USDOWNLOAD BACKUP CONVERTER
ConveyLinx system backup files are more than a "Just in Case" disaster recovery. The Backup Viewer will convert any ConveyLinx system backup into a spreadsheet containing valuable system information. Information which will allow quick identification of diagnostics, settings, or configuration issues from a customer site or your own project. Save the file to your "as built" project files to easily return and review any project setting in the future.
  • Quickly diagnose issues
  • Remotely monitor systems via backup files
  • Safely store project settings for future use

Card title

Card subtitle

Some quick example text to build on the card title and make up the bulk of the card's content.

Card linkAnother link
  • Reduces Cost and Saves Time
  • Super Compact Design
  • Deterministic Network
  • Collects Important Information
  • Robust M8 Connections
  • CE ETL UL and IP54
  • Backup in Readable Format

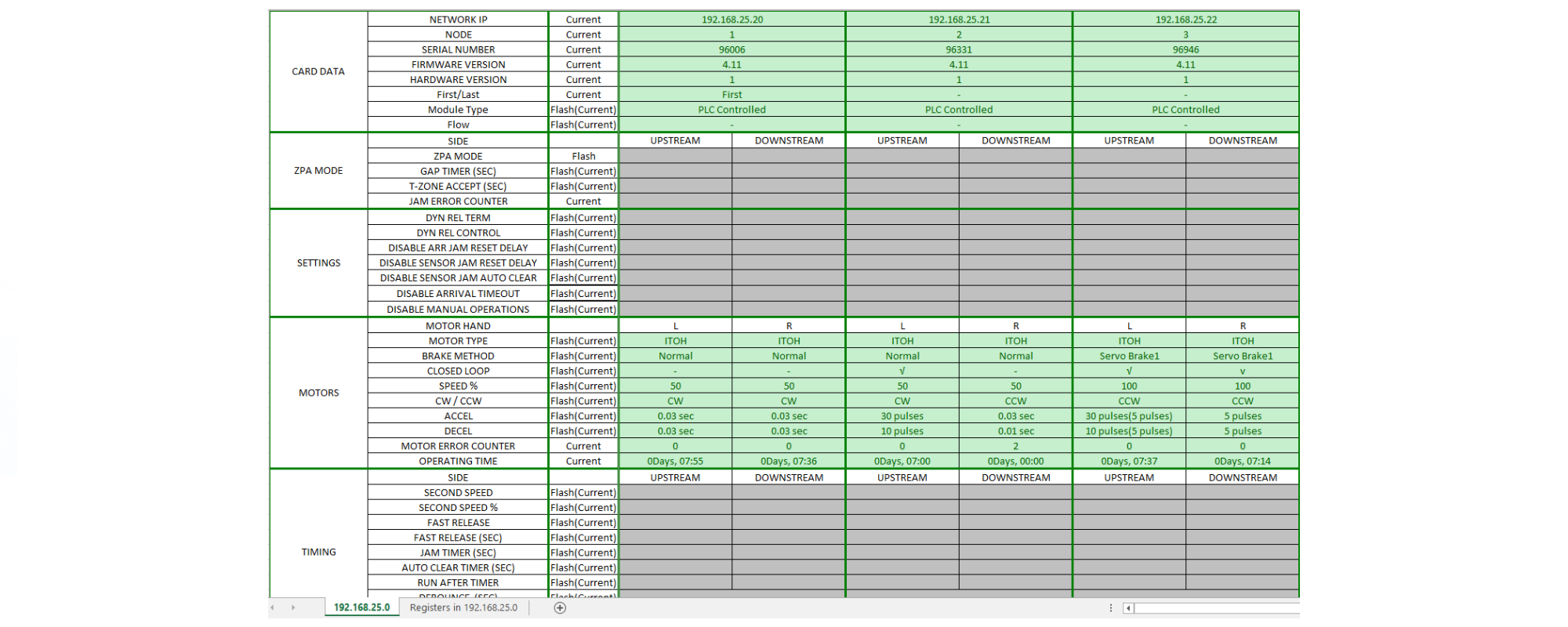

    The Backup-Converter takes the binary backup file and converts it to Microsoft Excel format so you can easily read and understand each ConveyLinx module's configuration and status.

    -CE certified, RoHS compliant, IP54 raitng
    -ETL Certified to UL Standards (Optional)
    -Tube material:Mild stell, zinc plating/ Stainless steel (SUS304)
    -Roller diameter:48.6 mm (1.9"), 50.0 mm (1.97")
    57.0 mm (2.24"), 60.5 mm (2.38")
    -Min. roller length:Refer to the "Availale minimum roller length table" below
    -Max. roller length:1000 mm *Contact us for longer than 1000 mm.
    -Cable length:600 mm (SENERGY) / 1000 mm (SENERGY-Ai)
    *Contact us for extension cables
    -Motor Connector:JST (SENERGY) /M8-4pin (SENERGY-Ai)
    -Operation:0.5 sec ON / 0.5 sec OFF duty cycle (Minimum)
    or continuous within rated load

    Technical data

    ECO modeBOOST modeBOOST-8 mode
    VoltageDC24V
    Nominal Output40W50W50W
    Rated current 2.5A3.5A3.5A
    Starting current 3.0A5.0A8.0A
    Ambient temperature 14 ~ 140°F
    Ambient humidity 10 ~ 90% RH (No condensation)

    Characteristics data

    *Rated torque and rated tangential force of BOOST-8 are the same value as BOOST.*BOOST-8 performance is available with EZ-24HTB and ConveyLinx HTF card only
    Speed codeGear boxGear ratioECO modeBOOST & BOOST-8 mode
    Speed
    (f/min)
    Torque (in-lbf)Tangential force (lbf)Current (A)Speed
    (f/min)
    Torque (in-lbf)Tangential force (lbf)Current (A)
    RatedStartingRatedStartingRated (max)StartingRatedBOOST StartingBOOST-8 StartingRatedBOOST StartingBOOST-8 StartingRated (max)BOOST StartingBOOST-8 Starting
    153 stage45.006.4 ~ 64.726.2145.027.4151.62.53.06.4 ~ 46.847.4189.1215.049.9197.7224.83.55.08.0
    2033.008.8 ~ 88.319.2106.220.1111.08.8 ~ 63.934.9138.4157.436.5144.7164.5
    2527.0010.7 ~ 107.815.787.016.490.910.7 ~ 77.928.6113.5129.029.9118.6134.8
    352 stage18.3315.8 ~ 159.010.659.011.161.615.8 ~ 115.019.476.987.420.380.491.4
    4515.0019.2 ~ 194.08.748.39.150.519.2 ~ 140.315.963.071.616.665.974.9
    6011.0026.3 ~ 285.06.435.46.737.028.3 ~ 191.611.646.152.412.148.254.8
    759.0032.1 ~ 323.25.229.05.430.332.1 ~ 233.89.537.843.09.939.544.9
    951 stage6.818242.3 ~ 426.73.921.94.122.942.3 ~ 308.67.228.632.57.529.934.0
    1255.0057.7 ~ 581.92.916.13.016.857.7 ~ 420.85.321.023.85.521.924.9
    1753.666778.8 ~ 794.92.111.82.212.378.8 ~ 574.83.815.317.44.016.018.2
    2153.0096.2 ~ 969.81.79.61.810.196.2 ~ 701.33.112.614.33.313.114.9
    • Robust and Unique Gearbox Design significantly improves life expectancy
    • Provides wide ranges of Speed and Power using Low Energy
    • JST Cabling for Simple Installation and Robust Cable Routing, IP54
    • CE Approved
    • ROHS Compliant
    • ETL Certified to UL Standards Available
    • IP54 & IP66 Ratings Available
    • ETL Certified to UL Standards Available
    • High Torque Rollers Available
    • Freezer and Wash-Down Rated Rollers Available
    • Mechanical Braking Available
